AHV-V TITAN
Raising the bar for broadband vibroseis

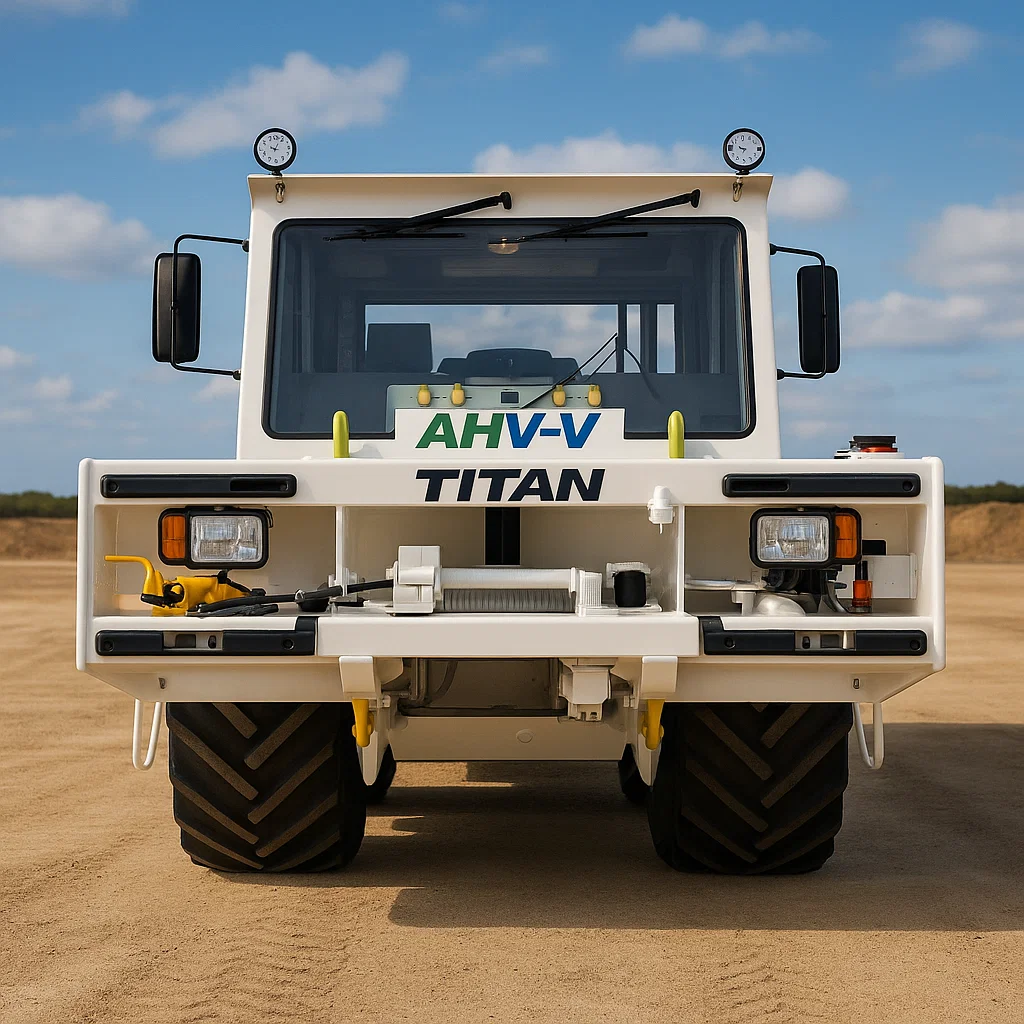

INOVA’s latest generation vibroseis source vehicle, the AHV-V TITAN, has raised the bar for broadband source performance. Designed to significantly increase low frequency force output while maintaining a broad frequency band performance, TITAN utilizes an increased stroke length and a re-designed hydraulic system to provide almost a doubling of force at low frequencies, compared to conventional vibroseis.
The hydraulic system has a faster response and a very stable supply pressure to minimize cavitation to ensure high force at low frequencies and greater stability at high frequencies. Major improvements in the baseplate and airbag design also result in better coupling, reduced harmonic distortion and a more accurate and repeatable source signature
Geophysical Benefits
Ensuring P-wave propagation and high-force energy penetration in a variety of terrains is our first priority when implementing new vib technology or design changes to our vibrators. Vibrator mechanics, maintenance and sweep design can negatively impact seismic imaging if the vehicles are not operated properly during acquisition.
If your imaging goal is waveform inversion model building (Baeten, 2013) or structural analysis that requires wavelet sharpness (Denis, 2013), the TITAN is the best broadband vibrator for the survey. Most conventional vibrators can’t deliver enough energy at the lower frequency range, however the TITAN has a stiffer baseplate and a hydraulic flow system that reduces harmonic distortion and improves signal penetration, producing double the force output at low frequencies.
Up to 80,000 peak force
1-130 Hz frequency range
Double low force output compared to conventional vibroseis
4.2Hz full drive
Operational Benefits
Anyone who’s spent time maintaining a vib fleet knows how mechanical failures and downtime can delay a seismic acquisition program – delays that are costly to both the geophysical contractor and the E&P operator. The ability to easily diagnose and fix problems in the field is essential, but more importantly, reliability and uptime are the primary reasons why that INOVA vibrators are #1 in the industry.
With more than 1800 AHV-IV in operation around the world and a rich history that dates back to 1970 with the introduction of the very first AHV vibrator (under Litton Resources Services aka LRS), the AHV product line is still known for its dependability and durability today. TITAN continues this reputation and reliability into the next generation of Vibroseis technology.
Rugged engine, durable frame, and serviceable design enables longer life and lowest cost of ownership
Quieter operation compared to AHV-IV Commander or Renegade vibrators
A patented Pre-Loaded Stilt Structure (PLS) design to create a stronger, more reliable actuator that dramatically prolongs the life of parts
Several available options to support a variety of operational needs
